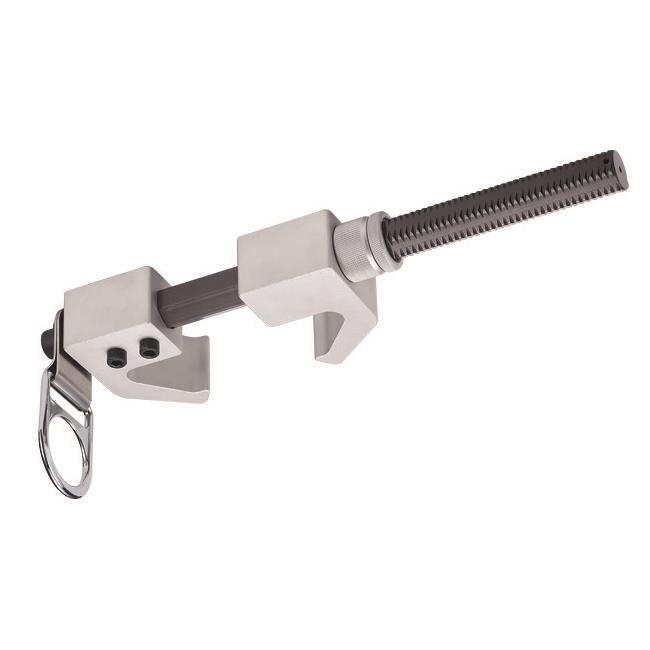

MATERIAL SPECIFICATIONS
●Hex Bar: Aluminum Alloy, min. tensile strength: 5,000 lbs (23kN).
●Jaws: Aluminum Alloy, min. tensile strength: 5,000 lbs (23kN).
●D-ring assembly: Alloy Steel, min. tensile strength: 5,000 lbs (23kN).
PERFORMANCE SPECIFICATIONS
●Tensile Strength: Min. 5,000 lbs (23kN).
●Max. Capacity: 425 lbs.
●Ideal for overhead fixed-position anchor points and vertical beam attachment.
●Fits beam flanges from 1/2" to 2" in thickness and from 4-1/2" to 12"(18", 24") in width.
●No tools are necessary for fast installation.
Beam Flange Specifications
| FB1012 | FB1018 | FB1024 | |
|---|---|---|---|
| Beam flange width ranging | 4.5 ~ 12 inch (114.3 - 304.8 mm) |
4.5 ~ 18 inch (114.3 - 457.2 mm) |
4.5 ~ 24 inch (114.3 - 609.6 mm) |
| Min. Shaft Breaking Load | 5,000 lbs. (23 kN) | 5,000 lbs. (23 kN) | 5,000 lbs. (23 kN) |
| D-ring Breaking Load | 5,000 lbs. (23 kN) | 5,000 lbs. (23 kN) | 5,000 lbs. (23 kN) |
| Weight | 6.83 lbs. (3.10 kg) | 7.5 lbs. (3.40 kg) | 8.16 lbs. (3.70 kg) |
