Bexus Industries Co., LTD.

Product number: TR2007

ANSI Z359.18

EN795:2012 Type B

●4 Kinds of assembly modes.

●Easy to install.

●Used in the interior of a building or a window opening.

●Is composed of lightweight aluminum, the entire system is lightweight and durable.

●This Window anchor is non-penetrating and clamps directly to the jamb so that you won't be damaging your work area.

●Portable and reusable.

●Built-in adjustment knob and telescoping design.

●Length: 104.95 inch (2666mm)

●Including Assembly set (45.28 inch (1150mm))

●Extension Tube A (45.31 inch (1151mm))

●Extension Tube B (33.00 inch (838mm))

●Width: 8.02 inch (204mm)

●Height: 3.50 inch (88.9mm)

●Weight: 23.37 lbs. (10.6kg)

●Material: Aluminum Alloy

●Min. Breaking Strength: 5000 lbs.

●Enabling installation on door / window frames of width from 22.87 to 94.48 inch (581- 2,400mm)

●Finish: Anodized

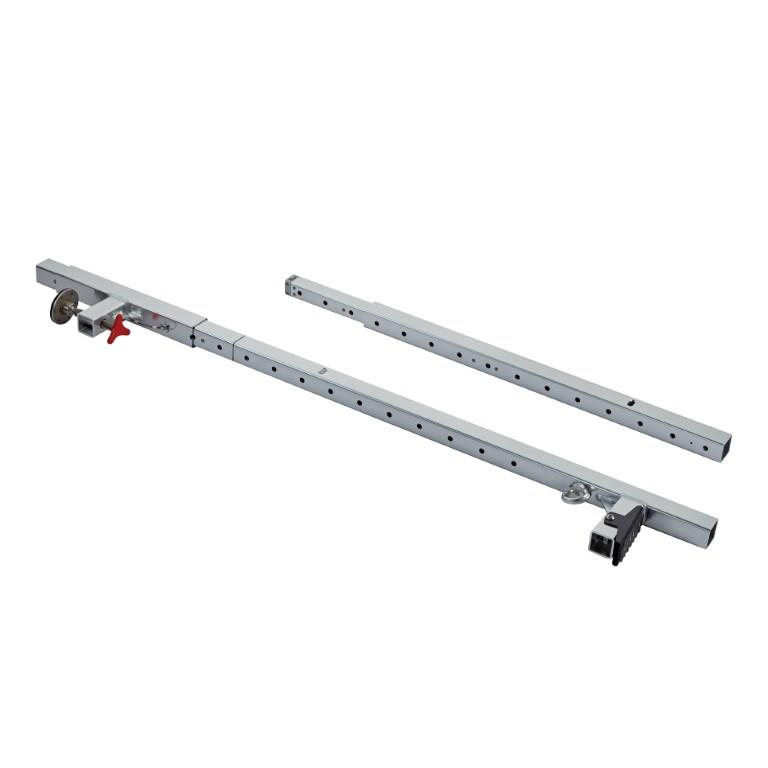

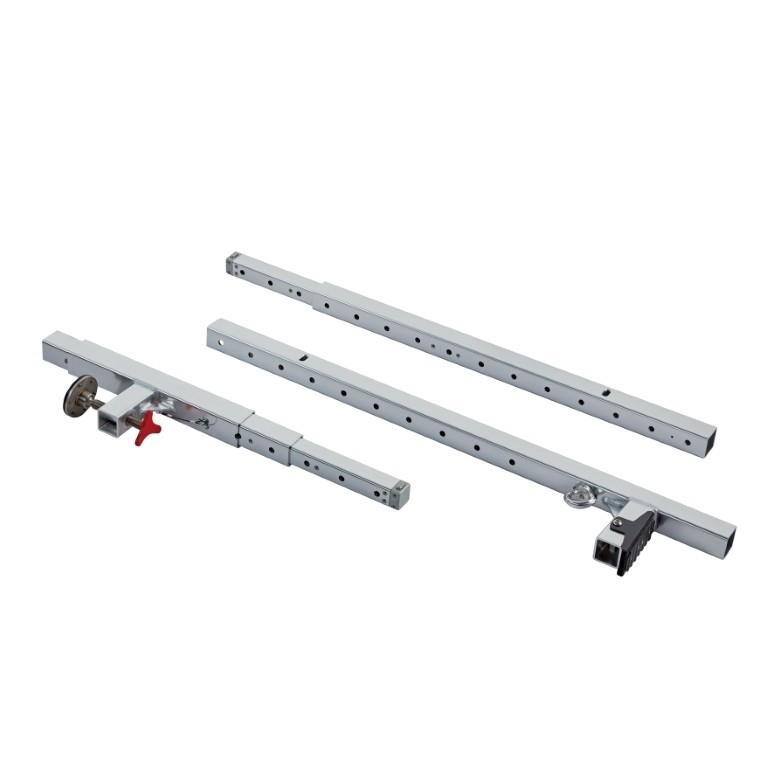

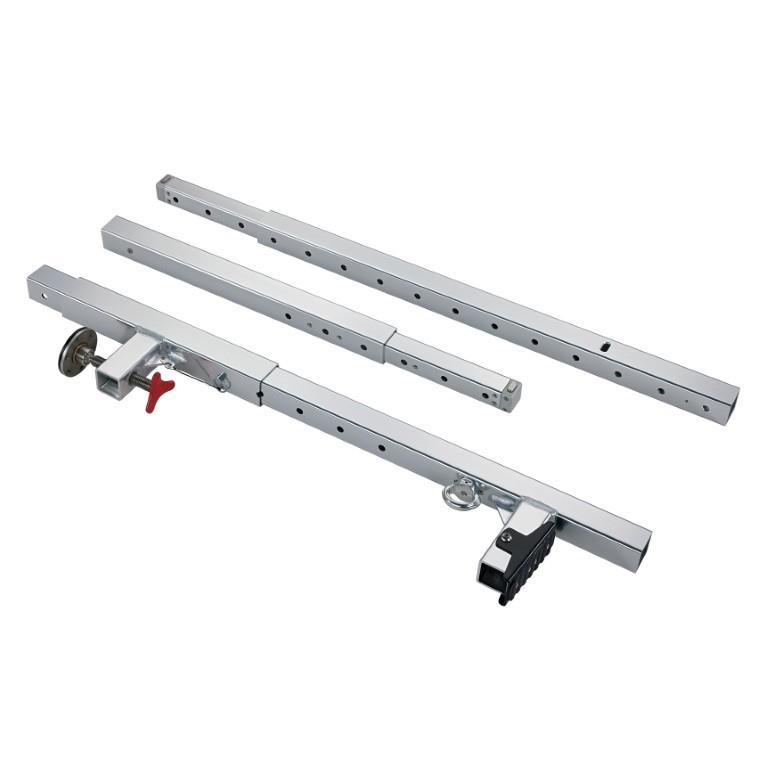

Assembly Mode Table

Assembly Modes Specifications

	Assembly Mode A	Assembly Mode B	Assembly Mode C	Assembly Mode D
Assembly Method / Length	Assembly set 45.28 inch (1150 mm)	Assembly set with Extension Tube B 68.95 inch (1751 mm)	Assembly set with Extension Tube A 81.28 inch (2064 mm)	Assembly set with Extension Tube A and B 104.95 inch (2666 mm)
Adjustable Width Range	22.87 - 34.91 inch (581 - 887 mm)	22.87 - 59.05 inch (581 - 1500 mm)	22.87 - 70.86 inch (581 - 1800 mm)	22.87 - 94.48 inch (581 - 2400 mm)
Swivel Top Breaking Load	5,000 lbs. (23 kN)	5,000 lbs. (23 kN)	5,000 lbs. (23 kN)	5,000 lbs. (23 kN)
Weight	11.68 lbs. (5.3 kg)	16.09 lbs. (7.3 kg)	18.29 lbs. (8.3 kg)	23.37 lbs. (10.6 kg)
